BPS 2313P
BPS 2313P
BPS 2313P
Roll over image to zoom in Click on image to zoom
BPS 2313PBPS 2313PBPS 2313P

BPS 2313P

SKU: BPS 23130408300

Butterfly valve cast iron

DN DA Double acting SR Single acting: 40 DA
STRUCTURE LENGTH : 33
PN: 16
Price:
0 kr

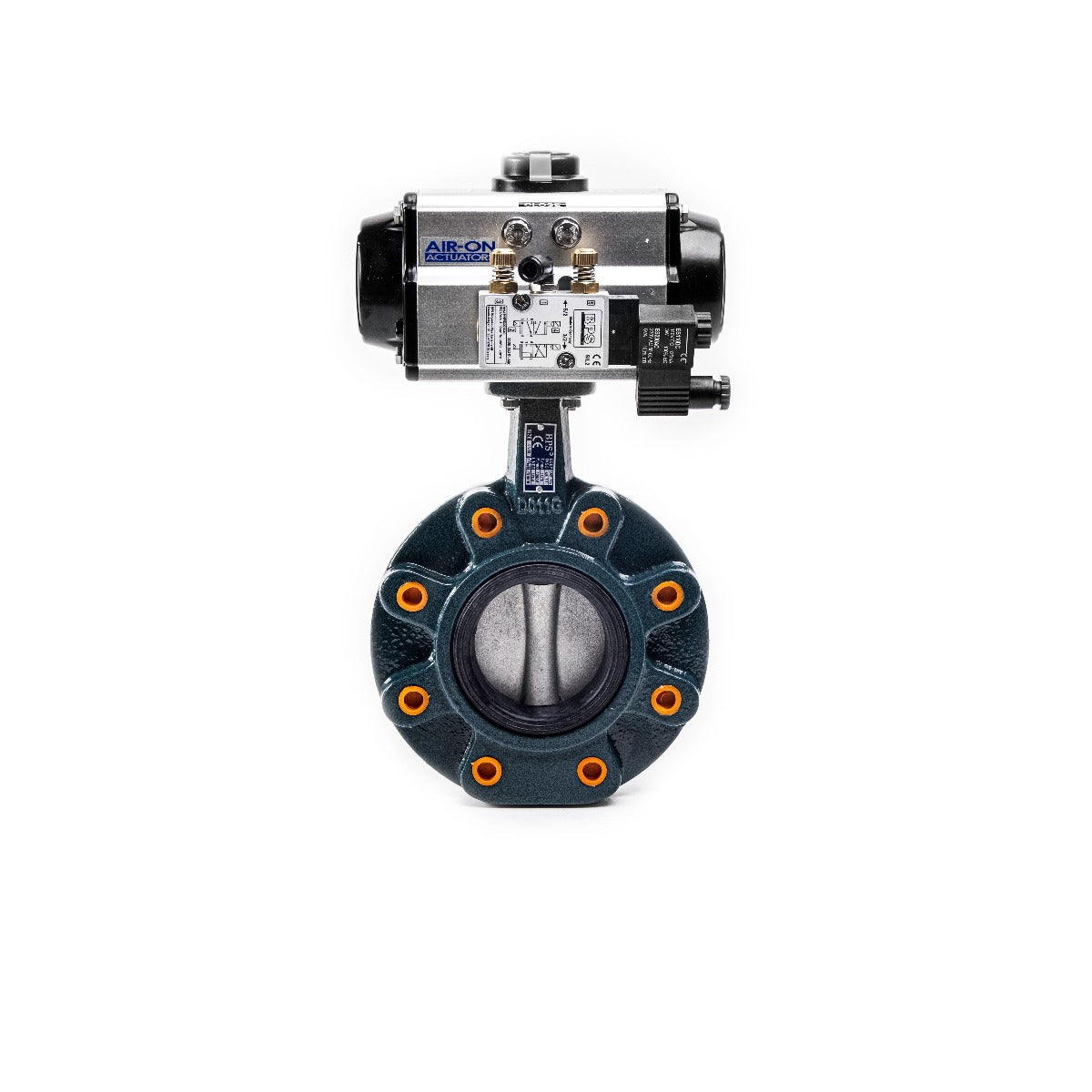

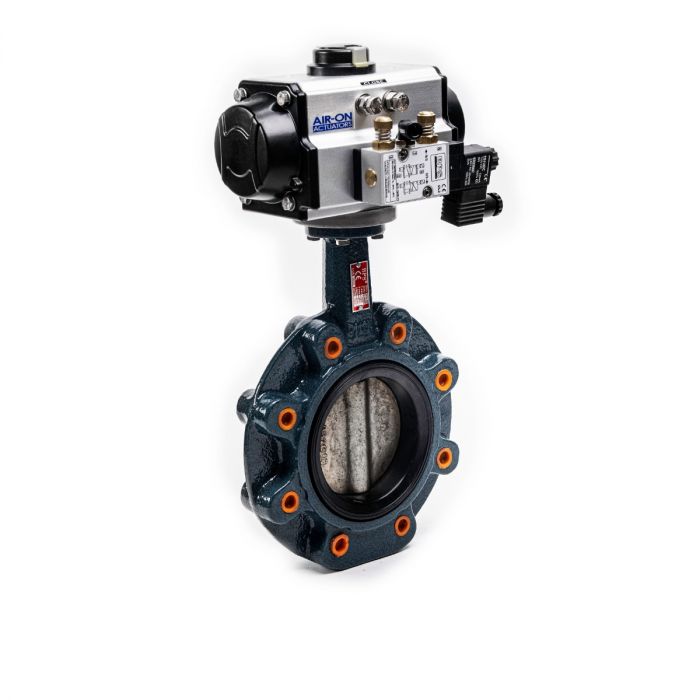

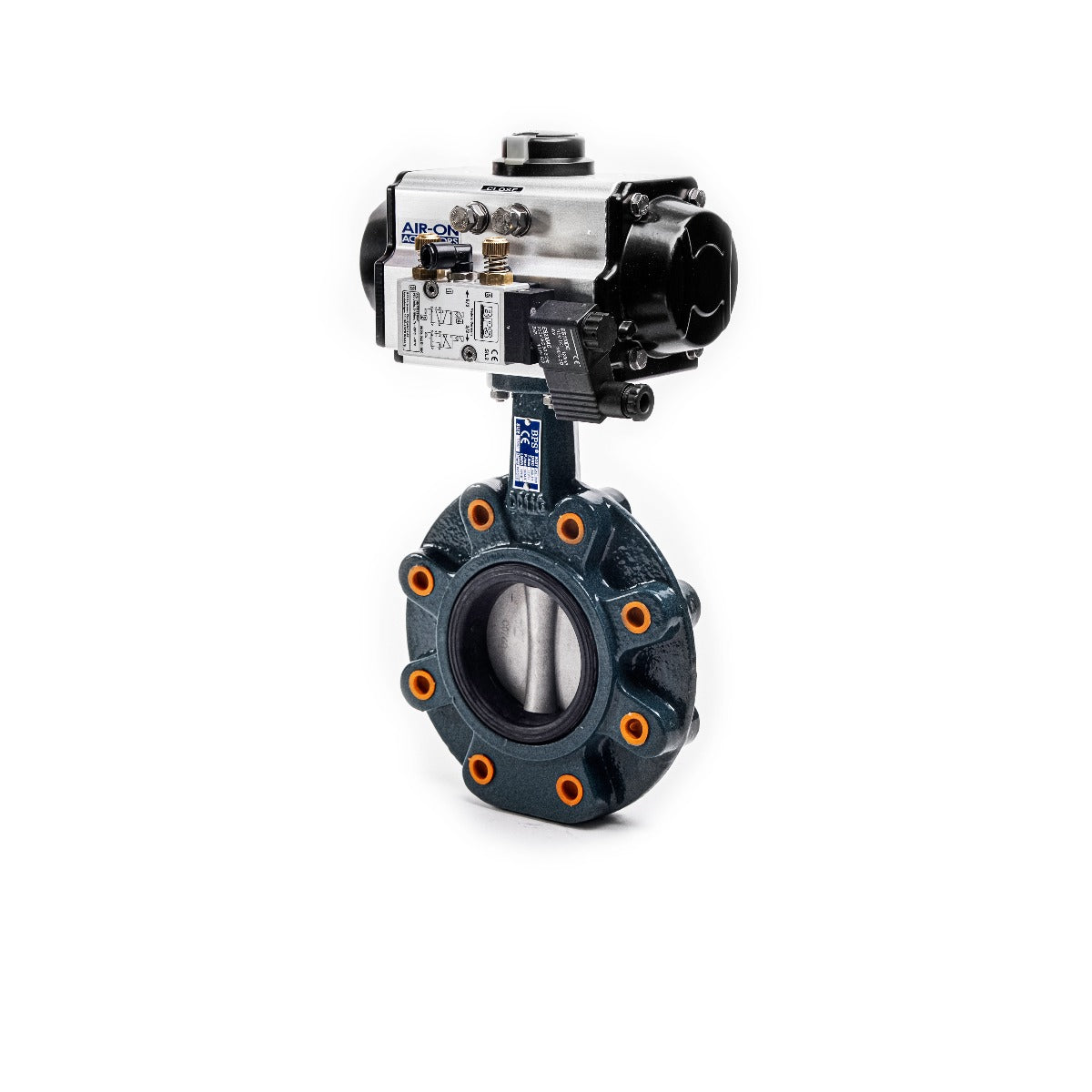

This butterfly valve has a lug type connection and can be used as an end of the line valve. Standard lining is EPDM rubber and the valve has an ISO 5211 flange for direct mounting of actuators. It has a stem bushing of PTFE between the body and shaft to ensure that the valve is easily operated over time. Face to face according to DIN EN 558-1 series 20 (K1). The pneumatic actuator is available in double acting and single acting versions.

Description

Body: Cast iron GG 25
Disc: Stainless steel AISI 316
Lining: EPDM
Connection: Lugged
Temp: -15°C - +110°C

Data sheet

  • - Data sheet SV-EN BPS2313 (PDF)
  • 3D BPS2313P 8300DA (STP)
